180-350mm Sheet Fed Paper Bag Machine Automatic 50-60pcs/Min WFD-350

Name: 180350mm Sheet Fed Paper Bag Machine Automatic 5060pcsMin WFD350
Brand: NanJiang Machinery
Price: 1 USD

Brand Name : NanJiang Machinery

Model Number : WFD-350

Certification : CE,ISO

Place of Origin : Jiangsu China (Mainland)

MOQ : 1 SET

Payment Terms : T/T, L/C

Delivery Time : 90 Days

Price : Negotiable

Supply Ability : 20 Sets/Month

Packaging Details : Steel Frames

Machine Model : WFD-350

Condition : New

Computerized : Yes

Total Power : 25KW

High Light : Fully Automatic Sheet Fed MachinSheet Fed Paper Carry Bag Making Machine, Fully Automatic Sheet Fed Paper bag machine

Contact Now

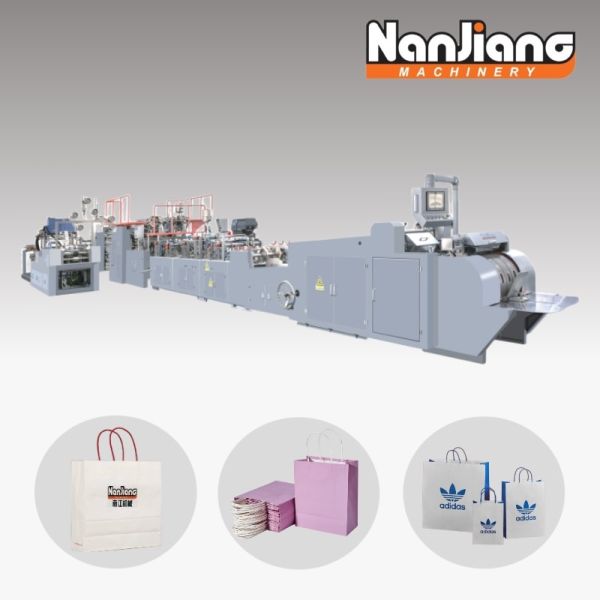

WFD-350 Fully Automatic Sheet Fed Paper Carry Bag With Handle Machine

Properties and uses:

It is fully automatic machine for the production of paper bags with paper twisted rope handle. The material could be Sheet paper or printed sheet paper. Whole machine is controlled by computer central control system with touch screen.

It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from sheet, handle pasting line,top of bag folding, tube forming, bottom forming, bottom glue, bag forming and final bag output,or fold the top and punching holes without handle unit. All steps are completed in-line; this machine is an idea equipment for Twist handle paper carry bags and realize a fully automated line for garment, shoes or all luxury brands packing bag production line which could be directly deliver to customers .

Technical parameter:

Machine Model	WFD-350
Min. Sheet Paper size	545x 330mm(625x 280mm W/O handles)
Max. Sheet Paper size	1025 x 520mm(1025x 600mm W/O handles)
Paper Thickness	100-200gsm/㎡ (210-250gsm/㎡need to die cut)
Paper Bag Width	180-350 mm
Paper Tube Length	240-490 mm
Bag Bottom Width	80-150mm
Bag Top fold Depth	50mm(35)-60 mm
Handle Patch Length	150 mm
Handle Patch Width	40-55 mm
Paper GSM for Handle patch	120-200gsm
Handle patch Roll Diameter	￠1000 mm
Paper Patch Roll Width	80-110 mm
Diameter of Twisted Rope	4-6 mm
Length of Twisted rope	145-165 mm
Speed	50-60 Bags/min.
Total Power	25KW
Machine Weight (L x W x H)	16000 x 4500 x 3000mm
Type of Glue	Cold & Hot melt Glue

Three types of handle bags can be made on this machine.
